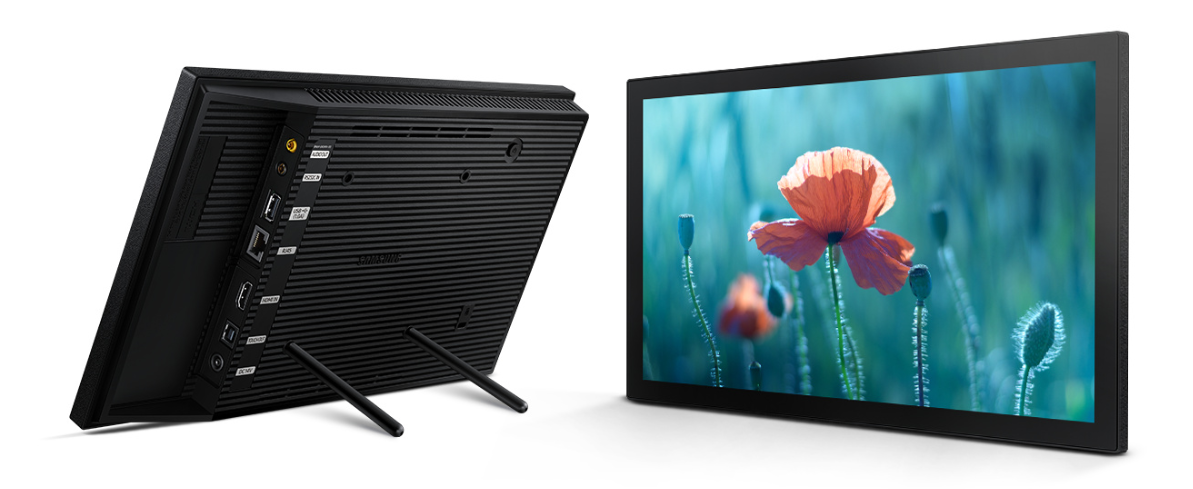

A série QBR oferece design simétrico completamente novo, simplificando e melhorando a instalação do suporte de parede. A parte de trás plana e sua espessura fina garantem um display à prova do tempo.
Com o novo recurso de guia de cabos da série QBR, os varejistas podem esconder os cabos, oferecendo uma experiência de compra organizada e atraente para os clientes, mesmo quando a parte de trás do display estiver visível.
SSSP é uma solução completa que simplifica a instalação e a manutenção. Com Tizen 4.0, as empresas podem aproveitar um desenvolvimento fácil, recursos reforçados protegidos com vários formatos e padrões web.
Obs: Monitor com tela touch integrada. Os widgets que rodam nativamente no VDS, possuem acesso ao toucj
Panel
Diagonal Size
13"
Type
Edge LED
Resolution
1920*1080 (Full HD)
Pixel Pitch(mm)
0.153 x 0.153
Active Display Area(mm)
293.76 (H) x 165.24 (V)
Brightness(Typ.)
300 (w/o Glass) nit
Contrast Ratio
600:1
Viewing Angle(H/V)
178/178
Response Time(G-to-G)
8ms(Typ.)
Display Colors
16.7 M (real 6bit, dither 8bit)
Color Gamut
45%
Operation Hour
16/7
Haze
10%
Display
Dynamic C/R
MEGA
H-Scanning Frequency
30 ~ 81kHZ
V-Scanning Frequency
48 ~ 75HZ
Maximum Pixel Frequency
594MHz
Sound
Speaker Type
Built in Speaker(5W)
Connectivity
Input
RGB
-
Video
HDMI 1.4 (1)
HDCP
HDCP 2.2
USB
USB 2.0 x 1
Output
Audio
Stereo Mini Jack
Power Out
Power Out - N/A / Touch Out - x1
External Control
RS232C(in) thru stereo jack, RJ45
Power
Type
Adapter
Power Supply
AC 100 - 240 V~ (+/- 10 %), 50/60 Hz
Power Consumption
Max[W/h]
27.5
Typical[W/h]
14.0
Rating[W/h]
25.0
BTU(Max)
93.8
Sleep mode
0.5
Mechanical Specification
Dimension (mm)
Set
322.0x193.5x29.8
Package
376x132x248
Weight (kg)
Set
1.1
Package
2.0
VESA Mount (mm)
100 X 100
Stand Type
Bar Type Simple Stand (Inbox)
Bezel Width (mm)
13.1mm
Operation
Operating Temperature
0 ℃ ~ 40 ℃
Humidity
10 % ~ 80 %
Feature
Key Features
Small Touch Signage Display Slim & Light Signage with Built-in MagicInfo S6, SSSP 6.0
Orientation
N/A
Remote Control
N/A
Special Features
H/W : Temperature Sensor,Pivot Display, Clock Battery(168hrs Clock Keeping), Built in Speaker(5W 1ch), IP5x Rating, Wi-Fi, 10 Point Touch(Max) S/W : Auto Source Switching & Recovery, LFD Home UI, Button Lock, Hot key option, Plug&Play (Initial Setting)
Internal Player
Processor
Cortex A72 1.7GHz Quad-Core CPU
On-Chip Cache Memory
L1 Instruction Cache : 48KB L1 Data Cache : 32KB L2 Cache : 2MB
Clock Speed
1.7GHz
Main Memory Interface
2.5GB LPDDR4 1.5GHz 64bit
Graphics
Graphic resolution : 1920x1080 Output resolution : 3840x2160 (Scale up from graphic processing result.)
Storage (FDM)
8GB (3.88GB Occupied by O/S, 4.12GB Available)
Multimedia
*Video Decoder : MPEG-1/2/4, H.263, H.264/AVC, UHD H.264/AVC, VC-1, HEVC, JPEG, PNG, VP8, VP9 *Audio Decoder : AC3 (DD), MPEG
IO Ports
USB 2.0
Operating System
Tizen 4.0 (VDLinux)
Certification
