Raspberry Pi 3 B :: Technical Description  Imprimir

Modified on: Tue, Dec 10, 2024 at 6:04 PM

Operating System


The Raspberry Pi uses the Raspberry Pi OS (Raspbian), which is based on Debian Linux, focusing on optimizing the system for the specific hardware.

Package Manager: APT

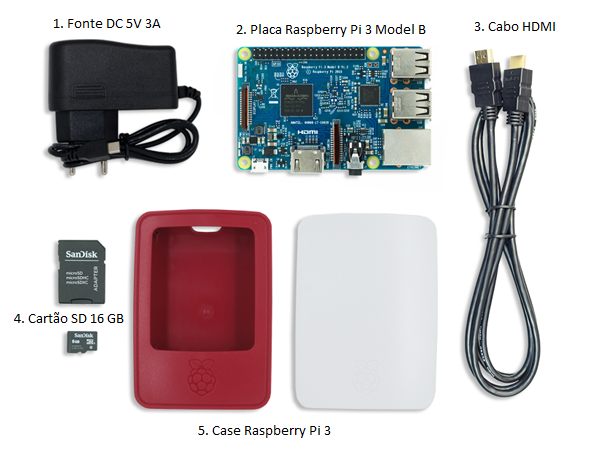

Hardware


The Raspberry Pi 3 Model B has much more processing power thanks to the Broadcom BCM2837 64-bit processor with a 1.2GHz quad-core ARMv8 CPU, 1 GB of RAM, Bluetooth 4.1, an Ethernet controller, and four USB ports. With integrated Wi-Fi and Bluetooth 4.1, you don’t need to buy additional adapters, freeing up USB ports for other applications, such as connecting an external hard drive.


The project does not include non-volatile memory (such as a hard drive) but has an SD card slot for data storage, making it a ready-to-use board for embedded projects with integrated Wi-Fi and Bluetooth 4.1.


Processor

The Broadcom SoC used in the Raspberry Pi is similar to a chip used in older smartphones (Android or iPhone). Operating at 700 MHz by default, the Raspberry Pi offers performance roughly equivalent to 0.041 GFLOPS. CPU performance is similar to a Pentium II 200 MHz from 1997-1999.


The graphics capabilities of the Raspberry Pi are approximately equivalent to the performance level of the 2001 Xbox, operating at 700 MHz by default. It doesn’t heat up enough to require a heat sink or special cooling. The SoC is stacked under the RAM chip, so only its edge is visible.


Networking


The Ethernet port on the Model B is provided by a built-in USB Ethernet adapter and allows internet connectivity via a USB Ethernet adapter or Wi-Fi.

To ensure the B2midia Digital Signage application works without any access blocking, we need to have TCP ports 80, 443, and 5938 open, as these are standard ports for HTTP and HTTPS protocols. In addition to the ports, we recommend opening the links/destinations below:


  • Raspberry Pi 3 Model B Anatel

  • Broadcom BCM2837 64bit ARMv8 Cortex-A53 Quad-Core Processor

  • Clock: 1.2 GHz

  • RAM: 1GB

  • Integrated Wi-Fi 802.11n (2.4 GHz)

  • Bluetooth 4.1 BLE integrated

  • HDMI Video Connector

  • 4 USB 2.0 Ports

  • Ethernet Connector

  • Camera Interface (CSI)

  • Display Interface (DSI)

  • microSD Slot

  • Audio and Video Connector

  • 40-pin GPIO

  • Anatel Certification Number: 04908-17-10629

  • Dimensions: 85 x 56 x 17mm


16GB MicroSD Memory Card


With this memory card, you can instantly add more storage to your device at an excellent cost-benefit ratio. You can expand your Raspberry Pi's memory and have more space to store information in addition to the operating system.


To withstand harsher conditions, the Memory Cards can function in temperatures ranging from 0°C to 60°C, allowing you to enjoy mobile media in almost any climate.


Specifications:


  • Type: MicroSD

  • Capacity: 16GB

  • Brand: SanDisk

  • Model: SDSDQM-016G-B35A

  • Speed: Read rate up to 6 MB/s

  • Class: 4


HDMI Cable v1.3 1.8m


With the HDMI cable, you can connect your Raspberry Pi to a video monitor with an HDMI input without complications. The HDMI cable transmits high-resolution data, such as from computers, televisions, and video games. The transmission occurs simultaneously for video and audio in very high quality.


Specifications:

  • HDMI Cable 1.8m

  • Brand: Multilaser

  • Connectors: HDMI Male x HDMI Male

  • Gold-plated Connector

  • Length: 1.8m

  • Version: 1.3

  • Weight: 136g



Official Raspberry Pi 3 Case


The Official Raspberry Pi 3 Case is an excellent option to enhance your project, as it was designed by the Raspberry Pi Foundation team, ensuring a perfect fit and unique design.


The board is secured in the case without the need for screws, and the structure consists of five parts that can be used according to your project. For example, you can use the lid with a cutout to access the board and GPIO or a different lid that fully covers the Raspberry Pi while maintaining access to the side connectors.


Specifications:

  • Official Case for Raspberry Pi 3

  • Material: Plastic

  • 5-part set

  • Dimensions: 97 x 70 x 29mm


Click Here to access the procedures for setting up and configuring the Raspberry Pi 3 Model B.
