Hello, welcome to the procedure that will help you get to know your Raspberry kit as well as know what each of the items that make it up are and how to assemble it.
Items and assembly of your Raspberry Kit
The Raspberry Pi 3 model B is a portable computer that connects to a monitor/TV and can be used by adding a standard keyboard and mouse, and all the hardware is integrated on a single board.

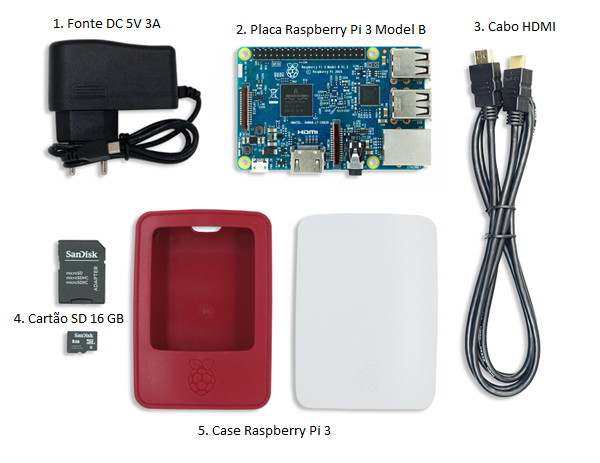

The Raspberry Pi Start Kit consists of the following items:
01 – 5V 3A Micro USB DC Switching Power Supply
02 – Raspberry Pi 3 Model B Board
03 – 1.8m HDMI v1.3 Cable
04 – 16GB MicroSD Memory Card
05 – Official Raspberry Pi 3 Case
Illustrated in the images below:
To assemble, follow the steps below:

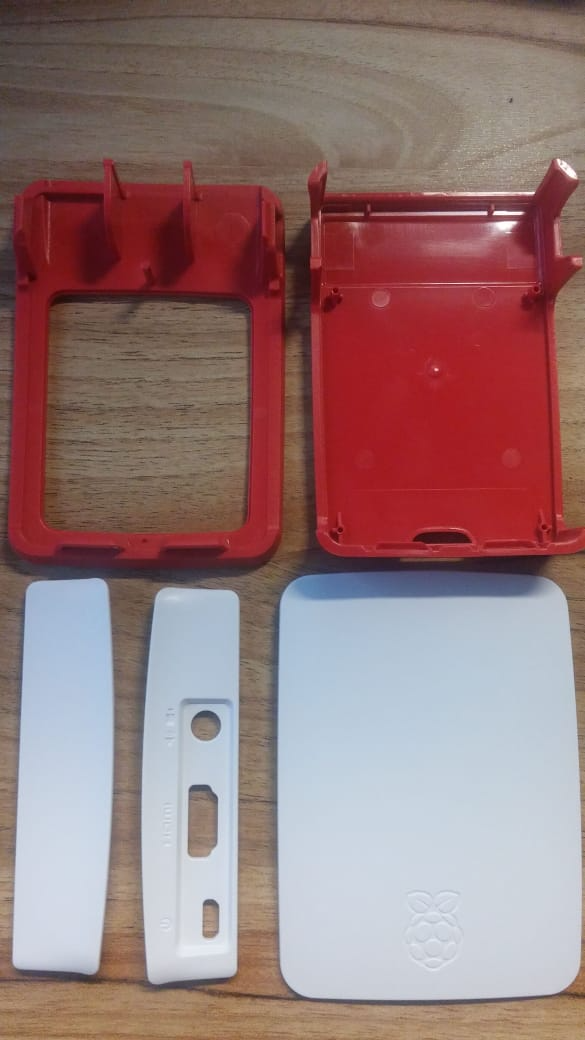

Step 1) Disassemble the case by removing the white parts (sides and cover).

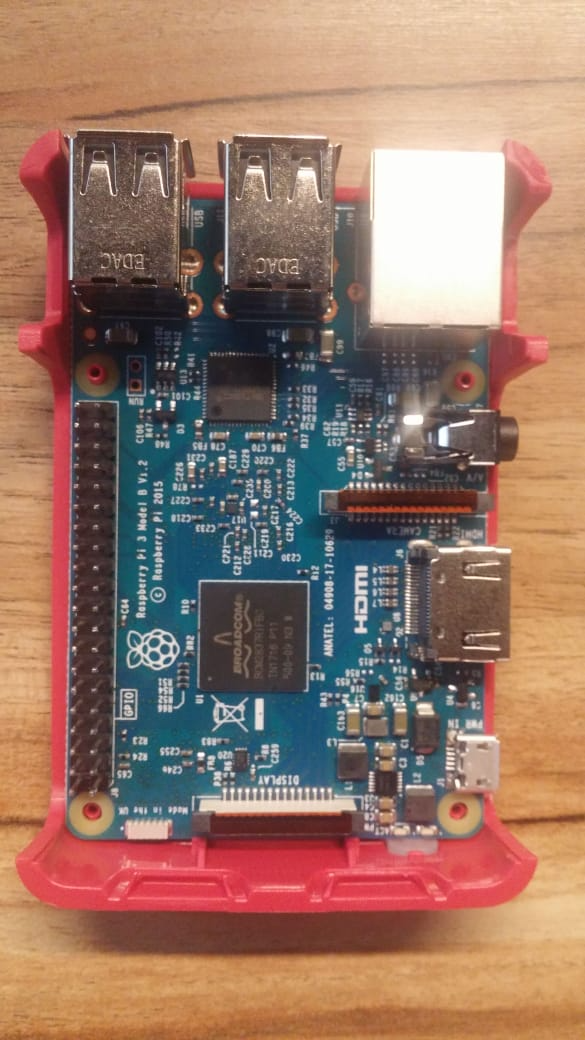

Step 2) Add the board to the case.

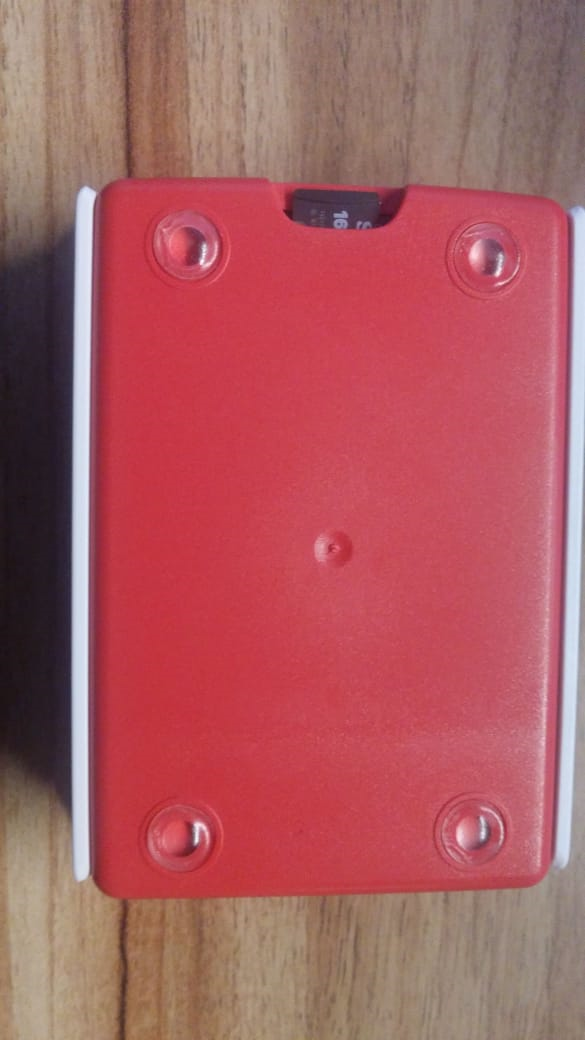

Step 3) Reassemble the case, add the SD Card and stick the silicone "rubbers" to the bottom of the case.
Once done, you can then connect the power, HDMI, and network cables (if applicable) to check that your player is working properly.
To access the Raspberry hardware configuration procedures Click Here.
